Simple Dc Voltage Multiplier Circuit Circuit Diagram - DC voltage source consisting of mains transformer and rectifier, in this case with output voltage of 15V and current of 5A. - AC high voltage source, with an output value of 5 to 10 thousand volts. This assembly consists of a driver circuit and a flyback transformer from an old TV. In my case it is a "Plasma Speaker" device I have made before. The schematics above will output a positive DC voltage relative to the ground (GND). If a negative output is required then the polarity of the diodes should be reversed. you can learn more about how a voltage multiplier works, by visiting the voltage multiplier page. For safety and improved performance the voltage multiplier should be placed in a protective casing, such as a PVC pipe filled
DC-DC Voltage Doubler (simplest Possible Circuit): This voltage doubler circuit uses a DPDT switch to alternately charge 2 series connected capacitors. The main purpose of this circuit is to illustrate the principle of operation of switched-capacitor voltage multipliers. Other applications are up tโฆ
7 Easy Voltage Doubler Circuits Discussed Circuit Diagram

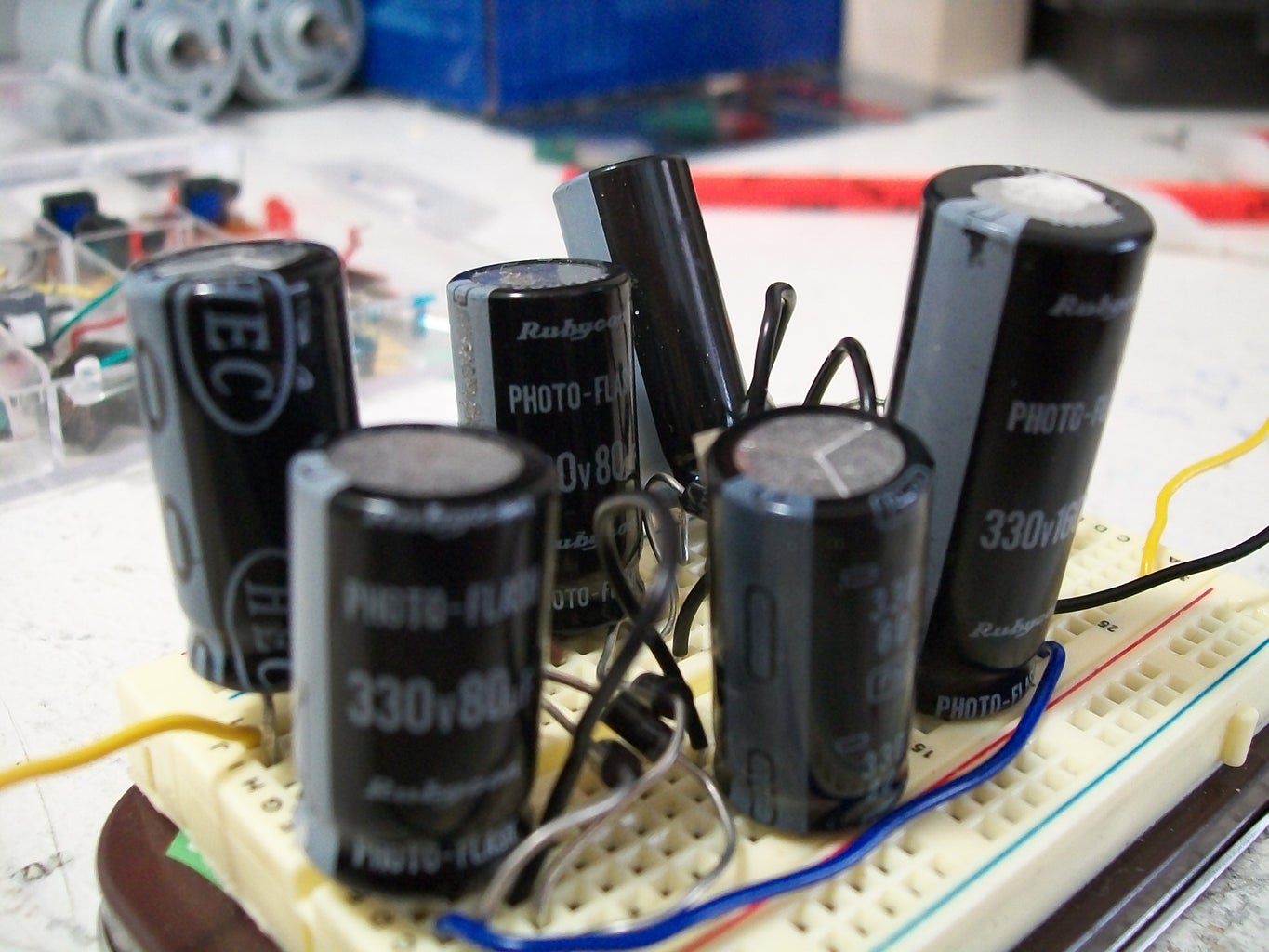

Welcome to my channel! In this video, I'll show you how to build a voltage multiplier circuit using simple components: capacitors and diodes. Voltage multipl Here is some info about voltage multipliers if you want to know how they work. If not, then skip to the parts list. Definition - "A voltage multiplier is an electrical circuit that converts AC electrical power from a lower voltage to a higher DC voltage by means of capacitors and diodes combined into a network." - Wikipedia Since all voltage multiplier circuits mandatorily require an AC input or a pulsating input, an oscillator circuit becomes essential for accomplishing the results. IC 555 Pinout Details. 1) Circuit Diagram of a Simple Voltage Doubler using IC 555. Referring to the above example, we can see an IC 555 circuit configured as an astable multivibrator
In this video, I explain the how a Dickson charge pump operates and how to build a basic example.Support these videos on Patreon: https://www.patreon.com/ben A voltage multiplier is a specialized rectifier circuit producing an output that is theoretically an integer time the AC peak input, for example, 2, 3, or 4 times the AC peak input. Thus, it is possible to get 200 VDC from a 100 Vpeak AC source using a doubler, and 400 VDC from a quadrupler. Any load in a practical circuit will lower these voltages.
DC Voltage Doubler (simplest Possible Circuit) Circuit Diagram
The voltage doubler is a type of the voltage multiplier circuit. Most of the voltage doubler circuits with few exceptions can be viewed in the form of a higher order multiplier at a single stage. Also, a greater amount of voltage multiplication is achieved when there are cascading identical stages which are being used together. Villard Circuit
