Here I have a piezoelectric vibration sensor hooked Circuit Diagram Quick Start Guide to Using a Piezo Vibration Sensor - Visit Circuitrocks and explore all details on Quick Start Guide to Using a Piezo Vibration Sensor. Skip to content. Menu. Shop; Use Piezo Vibration Sensor. Need to detect knocking on a surface? Use the Piezo Vibration Sensor. In fact, it's so straightforward to use that most Piezo In the code below, the incoming piezo data is compared to a threshold value set by the user. Try raising or lowering this value to increase your sensor's overall sensitivity. /* Knock Sensor This sketch reads a piezo element to detect a knocking sound. It reads an analog pin and compares the result to a set threshold. Something that you may have seen before is Piezo buzzers, a device that produces a sound that utilizes the piezoelectric effect. Similar to how there are sensors that will detect light or emit light on the same principle, there are piezoelectric sensors: a device that will detect vibrations, or most commonly, a sound!
Some piezo sensor's include weights at the end to help encourage vibration. AC Voltage Source. Piezo sensors are unique because they produce an alternating current (AC) voltage when stressed, converting mechanical energy to electrical. If you hooked an oscilloscope up to a piezo sensor, you might see waveforms like this when the sensor shakes: A piezo is an electronic device that generates a voltage when it's physically deformed by a vibration, sound wave, or mechanical strain. Similarly, when you put a voltage across a piezo, it vibrates and creates a tone. Piezos can be used both to play tones and to detect tones. The sketch reads the piezo output using the analogRead ()
Quick Start Guide to Using a Piezo Vibration Sensor Circuit Diagram
Detecting and measuring vibration can be used for several applications, Decision making circuits or alarm circuits. The best method to detect vibration is Piezo electric method. The vibration sensor or Piezo electric vibration detector is affordable sensing device that can be easily reachable by electronic designers, Engineers and hobbyist. In this tutorial we will learn how to detect shock vibrations using a simple Piezoelectric sensor Vibration module and Visuino. Watch a demonstration video. Step 1: What You Will Need

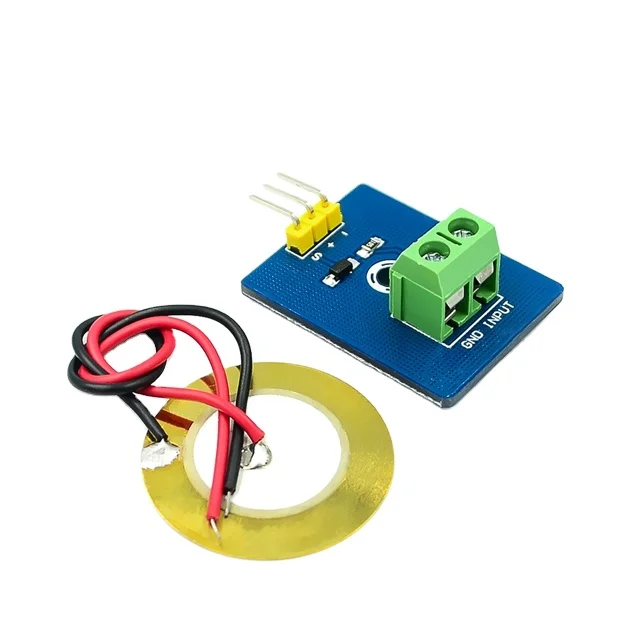

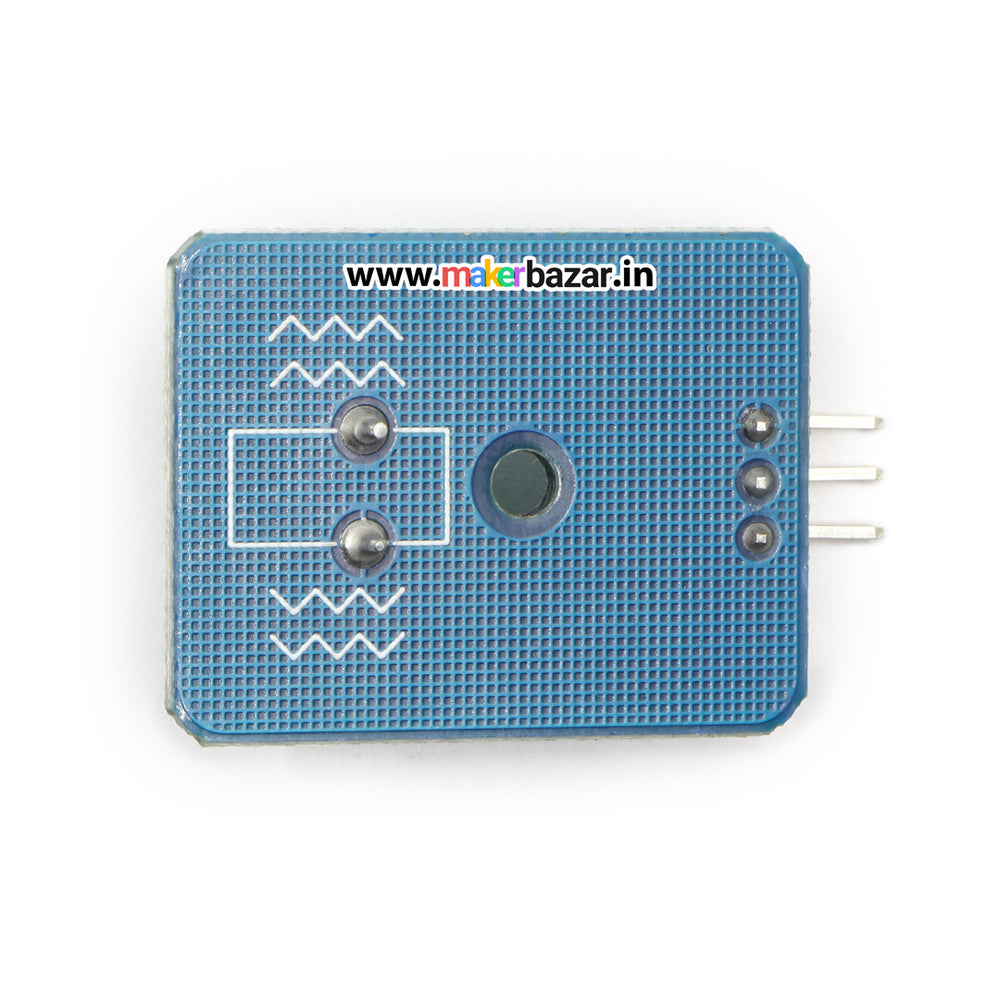

Piezoelectric vibration sensor is based on piezoelectric ceramic sheet. This sensor uses piezoelectric ceramics to generate vibration. When the piezoelectric ceramic piece vibrates, an electrical signal is generated. This sensor has two digital and analog outputs. The greater the vibration intensity, the higher the analog output voltage.
Detect a Knock Circuit Diagram
In this tutorial, you will learn how to use a Piezo sensor to detect vibration. We intend to use this function as part of a larger project involving the use of sensors in public spaces to turn on background music and trigger pre-recorded sounds when people pass through the space. To keep things simple, however, this tutorial will stick to the
Learn how to use the piezo vibration sensor using the materials from our STEM kit.Detect motion using a piezo vibration sensor and Arduino board.Playzenik.co
